Pivot Shuttle AMP'd RIDE Ride GX Eagle Alloy Wheels

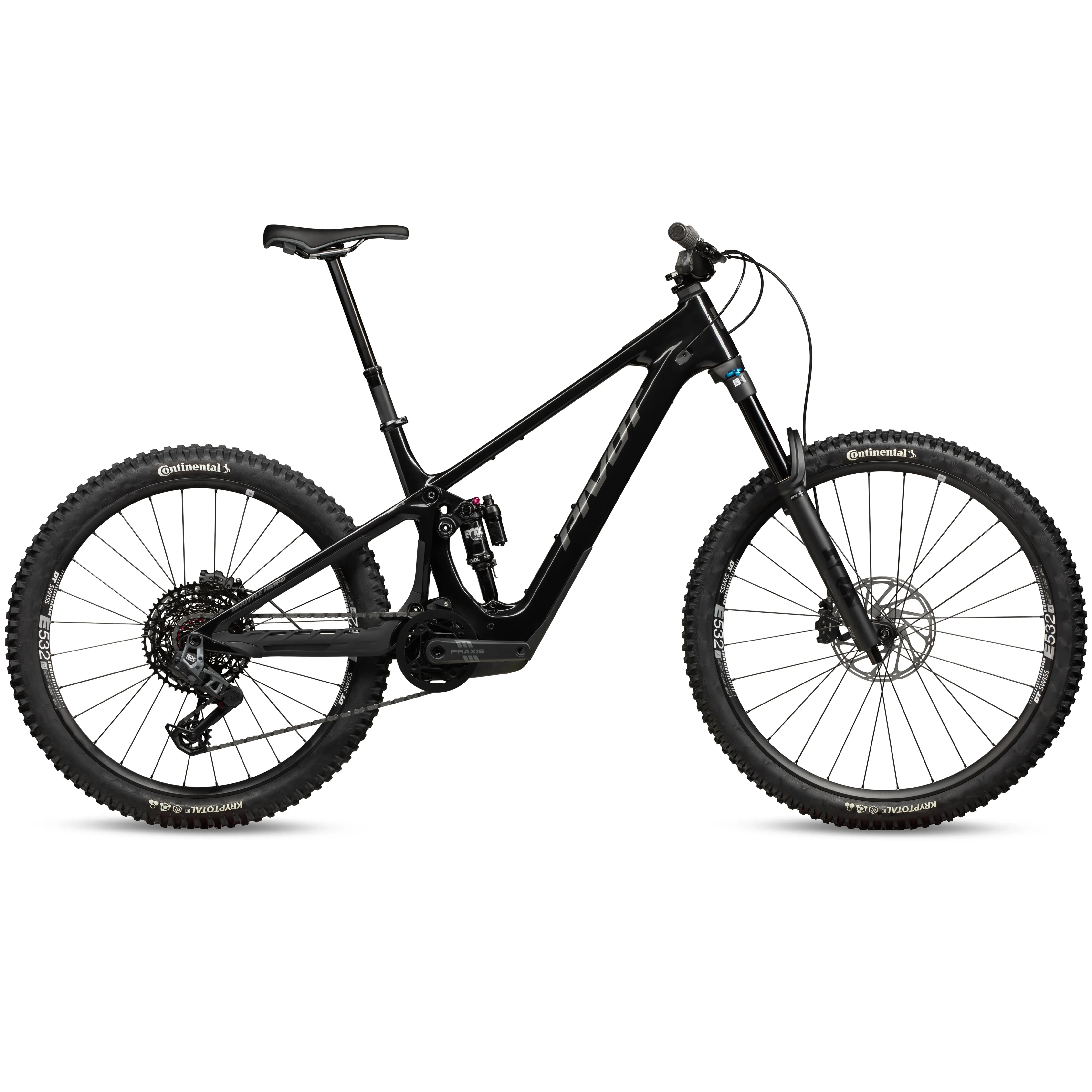

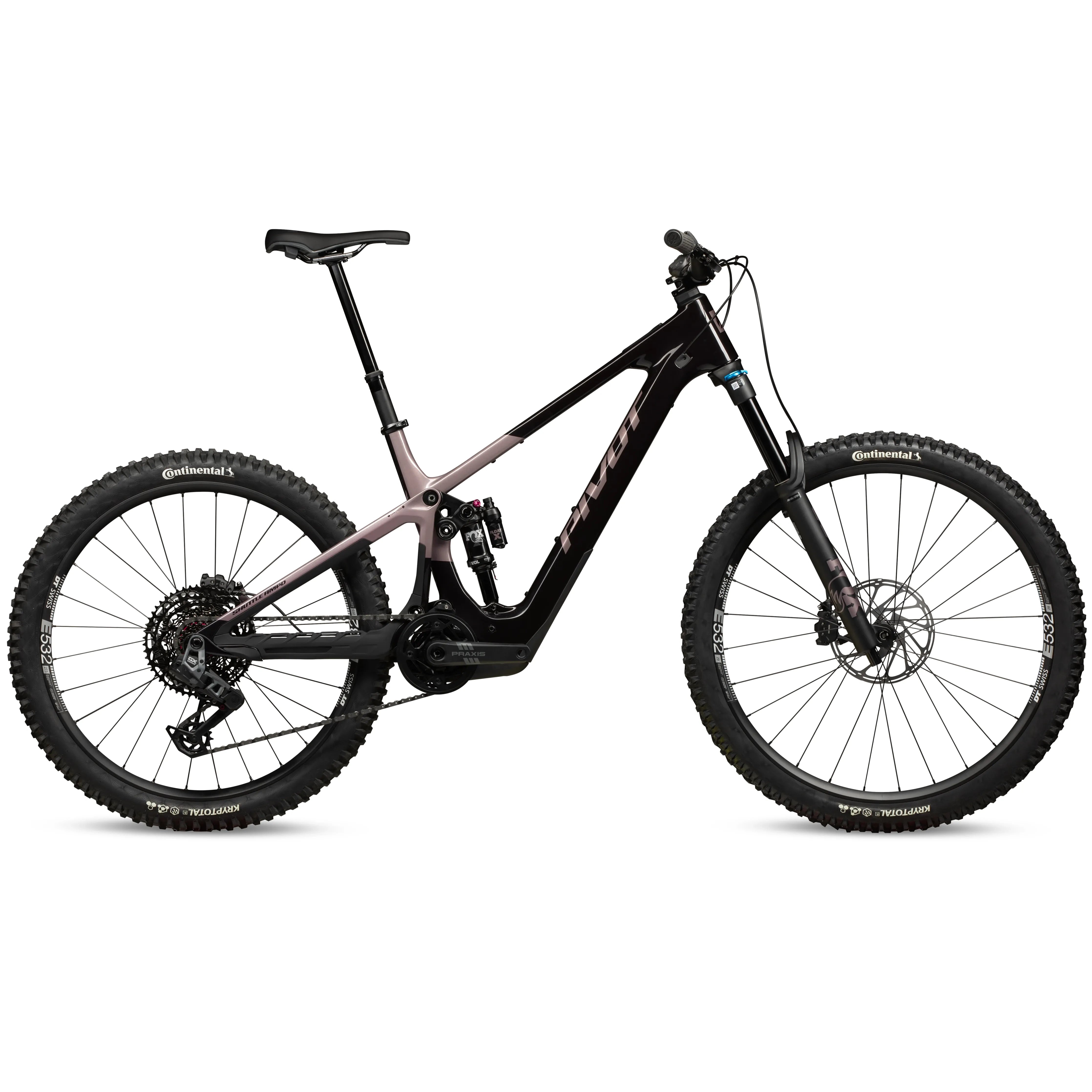

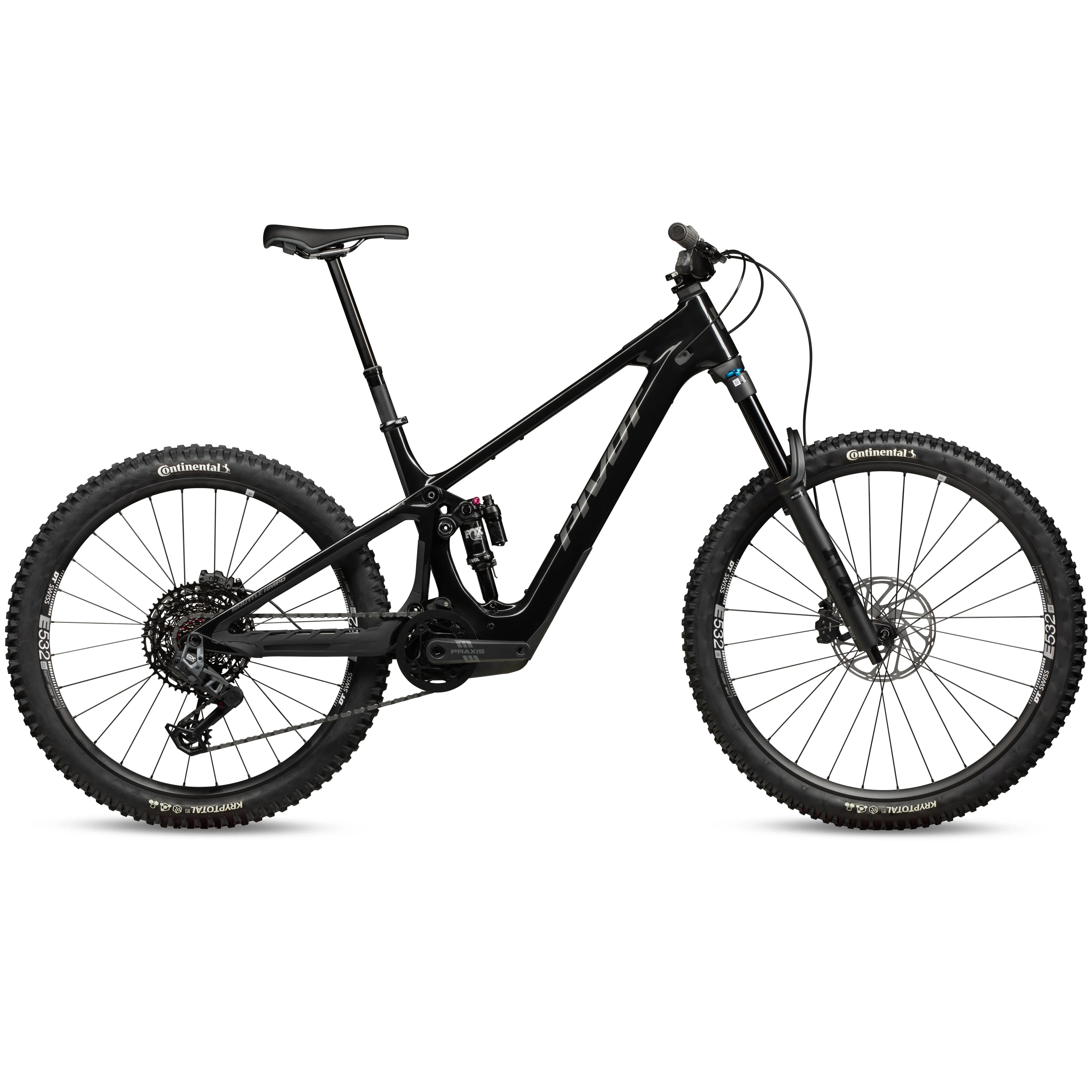

The Pivot Shuttle AMP'd Ride GX Eagle Transmission is a carbon full-suspension eMTB built around an ultralight Hollow Core carbon frame, the Avinox M2S drive unit, and a long-range 800Wh battery carried across every build level. Sized XS through XL in a mixed-wheel configuration, the chassis delivers 150mm of progressive rear travel paired with a 160mm Fox Performance 38 29" GRIP fork at 44mm offset, plus a Fox Performance Float X out back. A geo flip chip at the upper link mount adjusts the bike's attitude for steeper or more stable terrain, and the Pivot Cable Port System routes everything internally while injection-molded rubberized frame protection, Pivot Dock tool compatibility, and water bottle clearance on all sizes round out the frame package.
The Ride GX build runs an SRAM GX Eagle 12-speed transmission with the AXS Pod Controller and an XS-1270 10-52t cassette, driven by Praxis Alloy eCranks in 155mm with a 34t ring. Stopping comes from SRAM Maven 4-piston brakes on 200mm Centerline 2.0 rotors, and DT Swiss E532 wheels in a 15×110 front and 12×157 rear roll on a Continental Kryptotal-F 29 x 2.4" Super Soft Enduro front paired with a Kryptotal-R 27.5 x 2.6" Soft Enduro rear. Phoenix Race aluminum bars span 780mm with rise varying by size (20mm on XS-SM, 35mm on MD-XL), mounted to Phoenix Team Enduro V2 stems in 32mm, 40mm, or 50mm depending on frame size. A OneUp Dropper V3 scales from 150mm on XS-SM up to 240mm on XL, topped with a Pivot Ride E-Bike saddle.
Rider control runs through a full-color OLED touchscreen display and wireless Avinox remotes, keeping mode changes and battery data at a glance. For riders logging repeat descents on rough enduro terrain and wanting a long-range battery to stitch multiple climbs together without a mid-ride swap, the Shuttle AMP'd Ride GX hits the mark on travel, drivetrain, and range.
