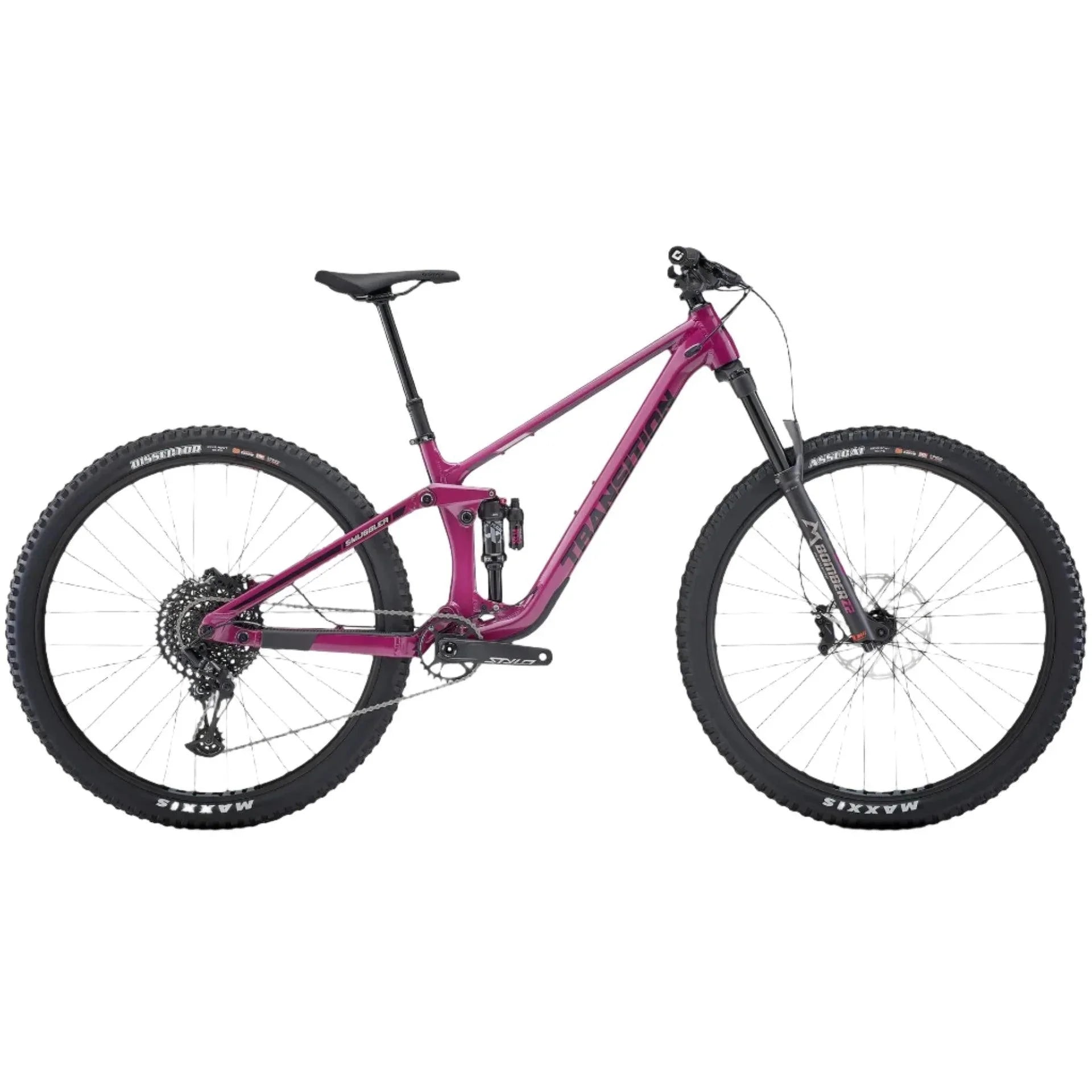

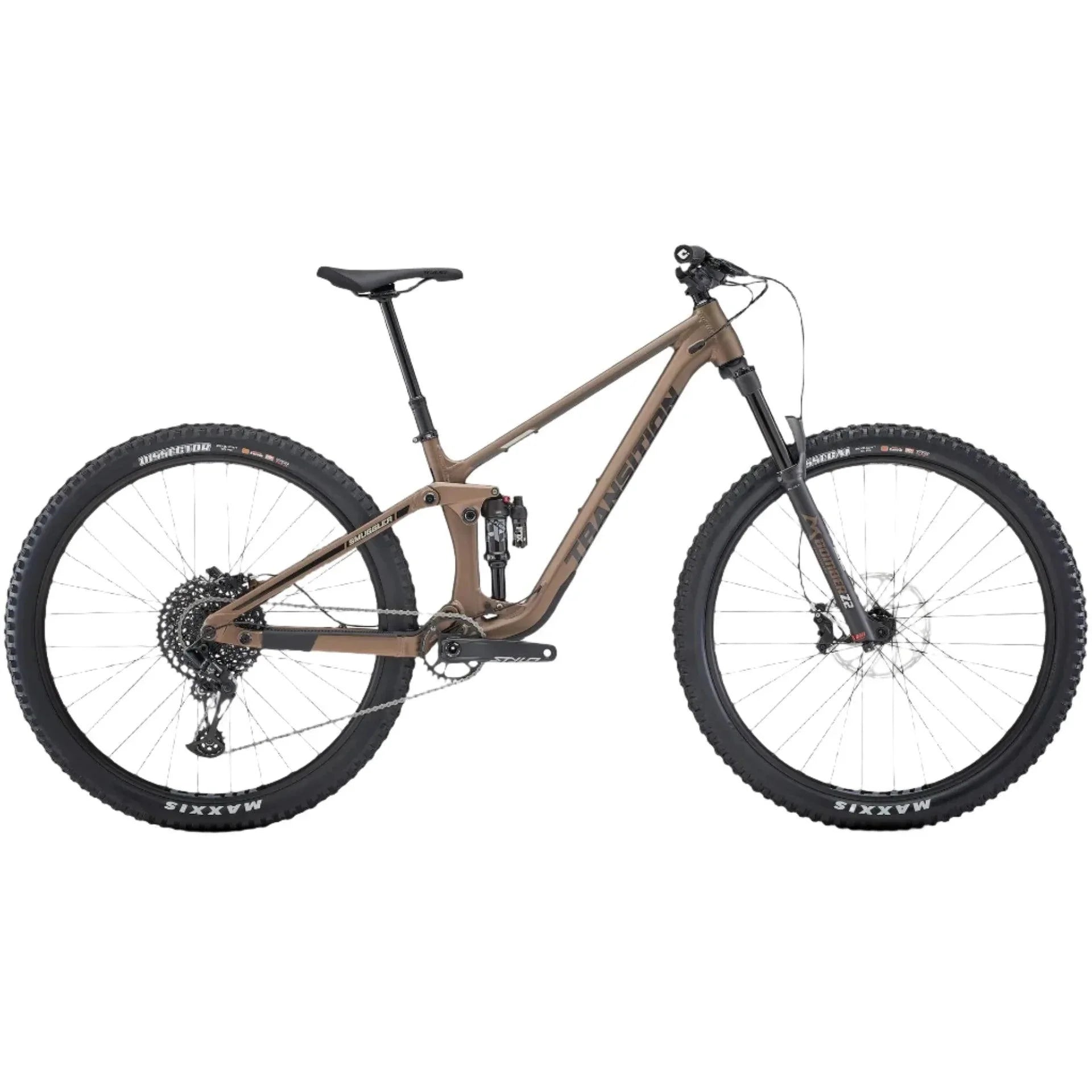

Transition Smuggler Carbon GX Mechanical 2023

Introducing the Transition 23 Smuggler Carbon GX Mechanical - the reliable tool for every trail! This is the truest form of a modern trail bike featuring 29 inch wheels, 130mm rear and 140mm front travel, and transition's beloved speed-balanced geometry (SBG) platform. It'll feel quick and agile in more mellow terrain but also come alive when things get gnarly. This bike is sure to throw a smile on your face from the time you start riding to the time you're ready for a cold one.

Frame Specifications

REAR TRAVEL:	130mm
FRONT TRAVEL:	140mm
WHEEL SIZE:	29" F&R
SIZES:	Carbon/Alloy: SM, MD, LG, XL, XXL
COLORS:	Carbon/Alloy: Espresso, Orchid
FRAME BEARINGS:	2x 6903, 4x 6902, 6x 6802
FORK AXLE TO CROWN:	552mm (140mm travel - Includes Headset)
FORK OFFSET:	44mm
REAR SHOCK SIZE:	210mm x 50mm / 130mm
SHOCK HARDWARE:	25mm x 8mm Bottom, 30mm x 8mm Top
HEADSET (TOP):	Carbon: IS42 Alloy: 44mm Zero Stack
HEADSET (BOTTOM):	Carbon: IS52 Alloy: 56mm Zero Stack
BB SHELL:	73mm BSA Threaded
CHAINLINE:	52-55mm
REAR BRAKE MOUNT:	180mm Post Mount, Max Rotor Size 203mm
REAR AXLE:	Transition Axle For UDH, 12mm x 148mm Spacing
ISCG TABS:	ISCG 05 (3mm offset outward from BB face to accommodate boost chainline)
SEATPOST DIAMETER:	31.6mm
SEAT CLAMP:	Carbon: 37.0mm Alloy: 34.9mm
MAX SEATPOST INSERTION:	Carbon: Small 225mm | Medium 255mm | Large 295mm | X-Large 325mm | XX-Large 360mm Alloy: Small 220mm | Medium 250mm | Large 290mm | X-Large 320mm | XX-Large 355mm
MAX CHAINRING SIZE:	34T Standard Single Ring at 52mm Chainline
MAX TIRE SIZE:	29" x 2.5"
REAR SHOCK PROGRESSION:	27%
REAR SHOCK SAG:	130mm (50mm) = 14-16mm (28-32%)
