Karakoram Prime-X + Split Interface Splitboard Binding

$1,342.00
Shipping calculated at checkout.
Size
Specs
View details
Premium Soft Boot Splitboard Binding with Interface

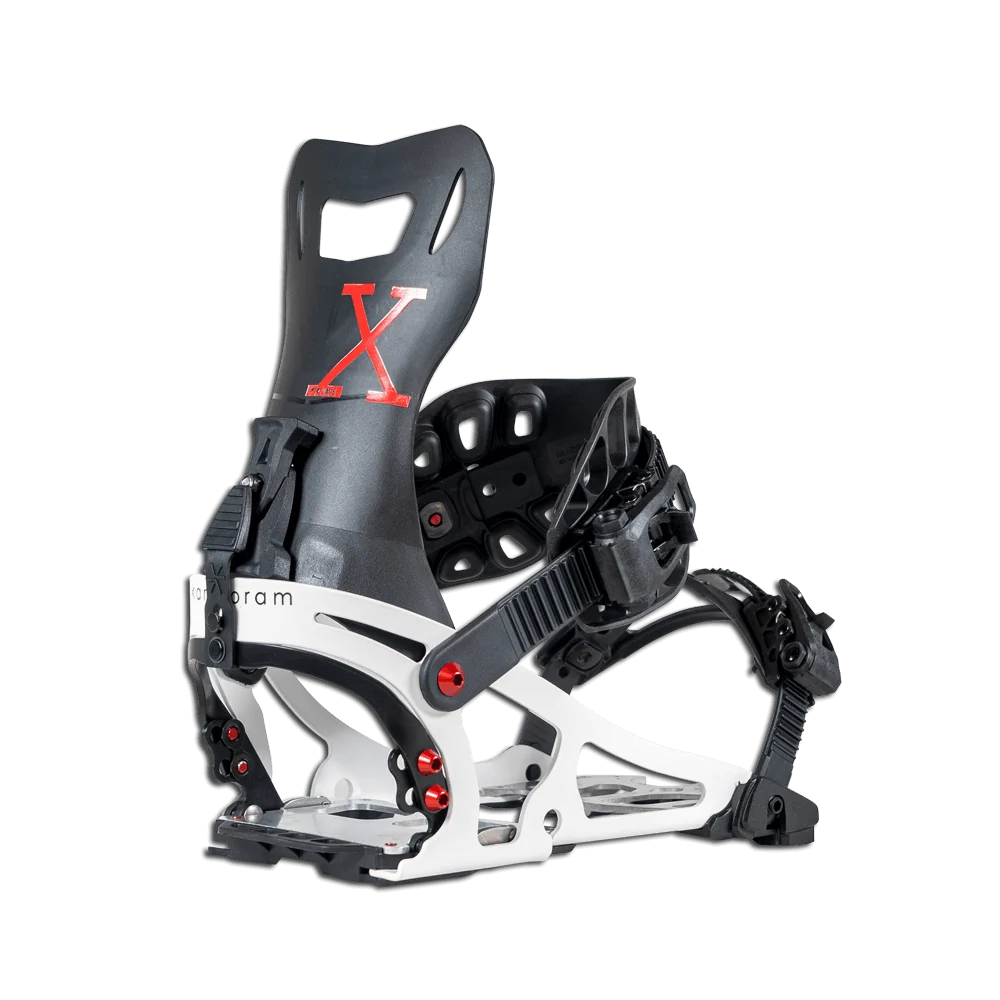

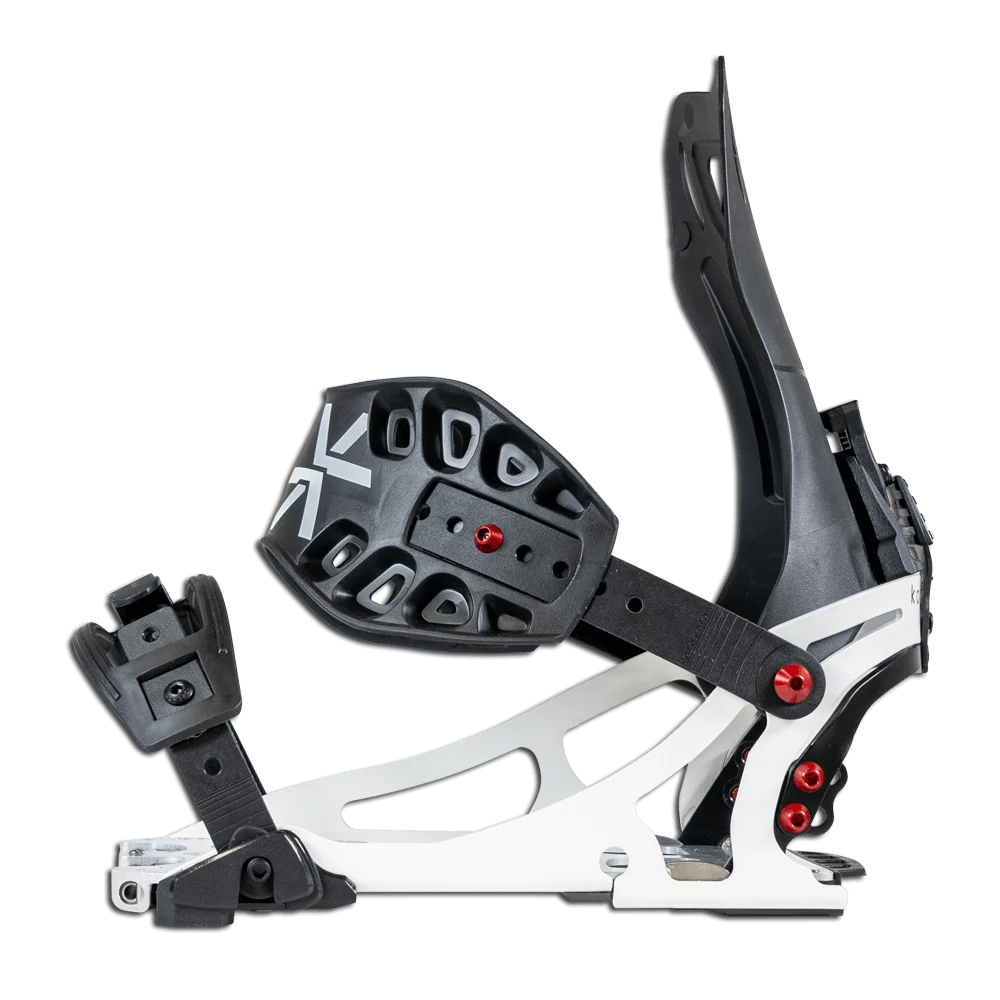

Karakoram Prime-X + Split Interface Splitboard Binding

The Karakoram Prime-X + Split Interface Splitboard Binding is Karakoram's premium soft-boot splitboard binding for experienced riders who want a precise, powerful ride and premium hardware for long tours. A CNC-machined 7075-T6 aluminum open chassis rated 7/10 and a C4 highback of Carbon Nyolite, Karakoram's carbon-reinforced composite, rated 8/10 drive the edge, and Active Joining preloads the binding to the included Ride Mode 3.0 interface with no play. Titanium and aluminum hardware, hollow titanium pins and recycled carbon buckles keep weight down, and a quarter turn drops the highback to -8° for the climb, which suits long missions, steep lines and riders who want the same bindings on a solid board.

Specs Verified Ratings and setup guidance verified against manufacturer specifications.

Is This the Right Binding for You?

Best For
Experienced soft-boot splitboarders who want a stiff, precise binding with premium hardware for long tours and steep, fast descents.
Consider Another Binding If
You tour in hardboots, want a softer, surfier binding, or need women's-specific sizing, which the Karakoram Nomad-W covers.

CCBB Binding Ratings

Uphill Efficiency
4/5
-8° walk mode, titanium hardware
Descent Security
5/5
7/10 chassis, 8/10 highback, Active Joining
Transition Speed
4/5
Drop-on Ride Mode 3.0, lever lock
Serviceability
4/5
Straps and spare parts sold individually

Rating scale: 5 = top of its class, 4 = excellent, 3 = good, 2 = specialized or below average, and 1 = limited.

CCBB Binding Profile

Brake WidthNone. Splitboard bindings do not use brakes
Riser HeightsTwo heights, DualSpeed Riser set with a pole basket
Boot CompatibilitySoft snowboard boots only
AdjustabilityForward lean 0° to 22° in 2° steps, -8° walk

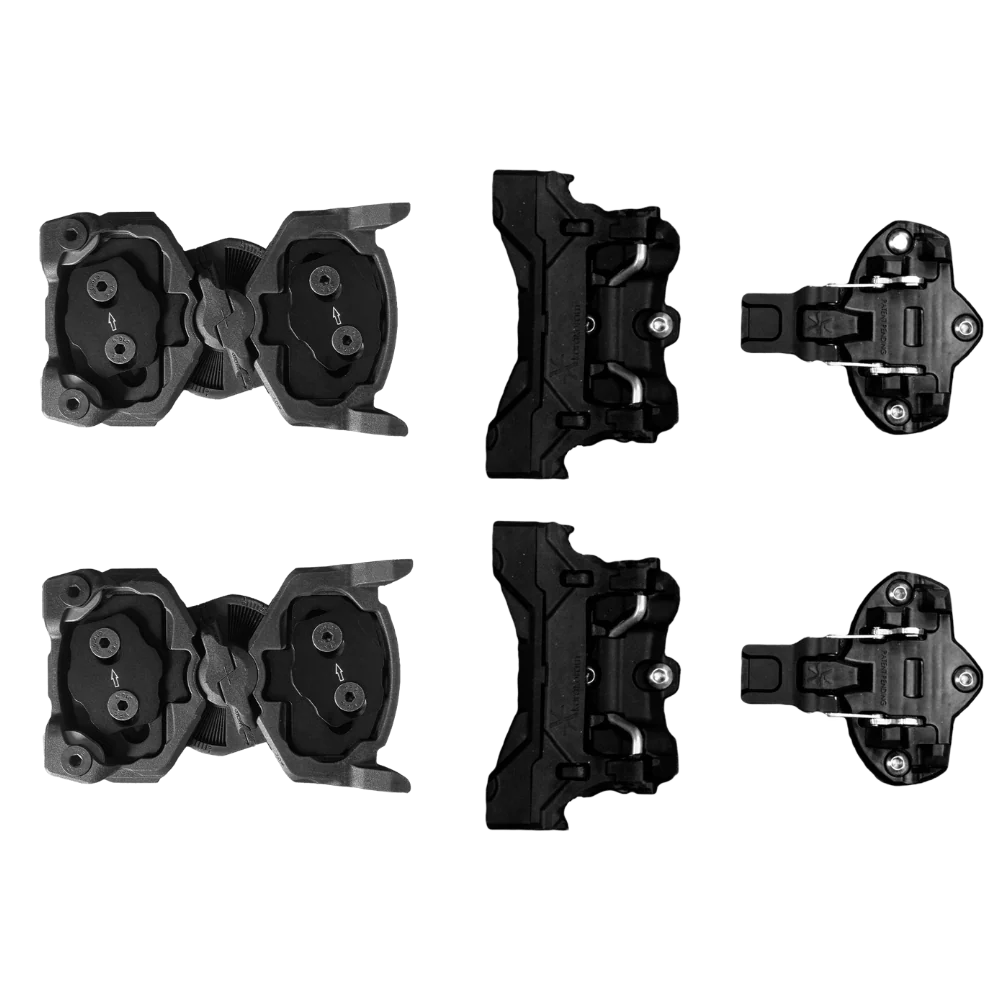

Mount PatternRide Mode 3.0 and Tour Mode, included

Why We Like It

  • The open chassis is CNC machined from 7075-T6 aluminum and rated 7/10, so the board can twist naturally under the binding while the frame still transfers power directly to the edges.
  • An asymmetric heelcup runs a high outside sidewall for edge power on the skin track and a dropped inside sidewall so you can tuck a knee or tweak a grab on the way down.
  • Every screw is anodized 7075-T6 aluminum or Grade 5 titanium and the pins are hollow Grade 5 titanium, which is where the Prime-X saves weight without thinning the parts that carry load.
  • AirPod straps in P-Lite TPE, which Karakoram rates 30% lighter than standard TPU, use independent pressure pods to remove pinch points on long days.

Best Uses

  • Long tours where premium hardware saves weight
  • Steep, fast and firm descents
  • Expert riders who want a stiff, precise binding
  • Riders running a splitboard and a solid board with one pair of bindings
  • Multi-day missions

Mounting and Setup Advice

The Prime-X ships with the bindings, the Ride Mode 3.0 interface, the Tour Mode brackets and DualSpeed Risers with Heel-Lock. The interface mounts to standard splitboard inserts, so check your board before planning stance. Sizes run Small for men's US 6 to 8, Medium for 8.5 to 11, and Large from 11.5; bring the boot in if you sit near a break. Riding a solid snowboard too means adding Karakoram Quiver-Connectors to that board.

Karakoram rates the Heel-Lock release load as equivalent to a DIN 6, but it is not certified; the Prime-X is a non-release soft-boot binding, so treat the Heel-Lock as a touring aid only. With a 7/10 chassis and an 8/10 highback, the Prime-X is on the stiff side of Karakoram's line; riders who want a softer, surfier feel should look at the Ultra Ranger's 7/10 highback.

Mounting and setup guidance reviewed by CCBB splitboard staff. Confirm interface and stance against your board before drilling.

📏 Technical Specifications Manufacturer specs · Click to expand

Fit and Setup

SizesSmall US men's 6 to 8, Medium 8.5 to 11, Large 11.5 and up
IncludedBindings, Ride Mode 3.0 interface, Tour Mode brackets, DualSpeed Risers with Heel-Lock
Forward LeanRide Mode 0° to 22° in 2° increments, Surf Mode 0° or 11°, Walk Mode -8°
RisersDualSpeed Riser, two heights, flipped with a pole basket
Heel-LockOn-the-fly heel lock down, folds away. Release load equivalent to a DIN 6, not certified
Sold SeparatelyQuiver-Connectors for solid snowboards, skins, crampons

Construction and Compatibility

ChassisCNC-machined 7075-T6 aluminum open chassis with asymmetric heelcup, flex 7/10
HighbackC4 highback in Carbon Nyolite composite, flex 8/10
StrapsAirPod straps in P-Lite TPE with independent pressure pods
HardwareAnodized 7075-T6 aluminum and Grade 5 titanium screws, hollow Grade 5 titanium pins
BucklesRecycled carbon fiber tow
InterfaceRide Mode 3.0 and Tour Mode with Active Joining preload
Boot CompatibilitySoft snowboard boots. Splitboard soft bindings only. Not compatible with ISO 5355 (Alpine), GripWalk (ISO 23223), ISO 9523 (Touring), pin/tech or telemark bindings. Board side: the included Karakoram Ride Mode 3.0 and Tour Mode interface mounts to standard splitboard inserts. Solid snowboards require Karakoram Quiver-Connectors, sold separately.
ReleaseNone. Non-release soft-boot binding
Recommended UseSplitboard touring and freeride

Compare the Karakoram Prime-X

Prime-X vs. Karakoram Ultra Ranger + Split Interface Splitboard Binding

Same interface and Active Joining. The Karakoram Ultra Ranger + Split Interface Splitboard Binding runs a Carbon Nyolite chassis and a 7/10 highback, a touch softer and simpler. The Prime-X steps up to a machined 7075-T6 chassis, an 8/10 C4 highback and titanium hardware. Choose on stiffness and budget.

Shop Karakoram Ultra Ranger + Split Interface Splitboard Binding

Prime-X vs. Spark R&D Surge ST

The Spark R&D Surge ST is the stiffer of Spark's two soft boot bindings and rides on pucks sold separately. The Prime-X includes its own Ride Mode 3.0 interface and clamps to it with Active Joining. Both suit strong riders; interface preference decides.

Shop Spark R&D Surge ST

Prime-X vs. Nitro Vertical ST Splitbindings

Both are soft boot splitboard bindings, and the systems are not cross-compatible. The Nitro Vertical ST Splitbindings run on pucks; the Prime-X uses Karakoram's own interface with premium aluminum and titanium hardware. Compare on interface, stiffness and what is included in the box.

Shop Nitro Vertical ST Splitbindings

Common Questions

Who should buy the Karakoram Prime-X + Split Interface Splitboard Binding?
The Karakoram Prime-X suits experienced soft-boot splitboarders who want a stiff, precise binding with premium hardware. A machined 7075-T6 chassis rated 7/10, an 8/10 C4 highback and Active Joining on Ride Mode 3.0 deliver a powerful ride, and titanium and aluminum hardware keeps weight down on long tours.
What boots and boards work with the Karakoram Prime-X?
The Karakoram Prime-X takes soft snowboard boots only. It is a splitboard soft binding and is not compatible with ISO 5355 (Alpine), GripWalk (ISO 23223) or ISO 9523 (Touring) boots, or with pin/tech or telemark setups, so hardboot touring setups are out. On the board side, the included Ride Mode 3.0 and Tour Mode interface mounts to standard splitboard inserts. Solid snowboards need Karakoram Quiver-Connectors, sold separately.
Is the Karakoram Prime-X a hardboot binding?
No. The Prime-X is a soft-boot splitboard binding with a highback and AirPod straps, built for snowboard boots. It does not take alpine touring boots, tech inserts or any ISO-sole boot. Hardboot splitboard setups use a different binding type.
Does the Heel-Lock make the Prime-X a release binding?
No. Karakoram rates the Heel-Lock release load as equivalent to a DIN 6, but it is not certified, and that number is easy to misread. The Heel-Lock is a touring convenience that holds your heel down on flat approaches, and the Prime-X is a non-release soft-boot binding in both tour and ride mode. Do not treat it as a safety release.
What sizes does the Prime-X come in?
Three sizes: Small for men's US 6 to 8, Medium for 8.5 to 11 and Large from 11.5. Riders near a size break should bring their boots in, since the fit at the toe and heel matters more than the number on the box. Women and smaller-footed riders should also look at the Nomad-W.
What comes in the box, and what else do I need?
The Prime-X ships with the bindings, the Ride Mode 3.0 interface, the Tour Mode brackets and DualSpeed Risers with Heel-Lock, so a splitboard with standard inserts needs nothing else on the binding side. Skins and crampons are separate purchases, and riding a solid snowboard needs Karakoram Quiver-Connectors.

Our Verdict

The Karakoram Prime-X + Split Interface Splitboard Binding is the pick for experienced riders who want a stiff, precise soft-boot setup with premium hardware. A machined 7075-T6 chassis rated 7/10, an 8/10 C4 highback and Active Joining on the included Ride Mode 3.0 interface give a precise, powerful ride, and titanium and aluminum hardware keeps weight down. Dual Ride-Stride drops to -8° for the climb. Know that the Heel-Lock is a touring aid, not a certified release, and plan skins and crampons as separate purchases.
