Karakoram Ultra Ranger + Split Interface Splitboard Binding

$938.00
Shipping calculated at checkout.
Size
Specs
View details
Soft Boot Splitboard Binding with Interface

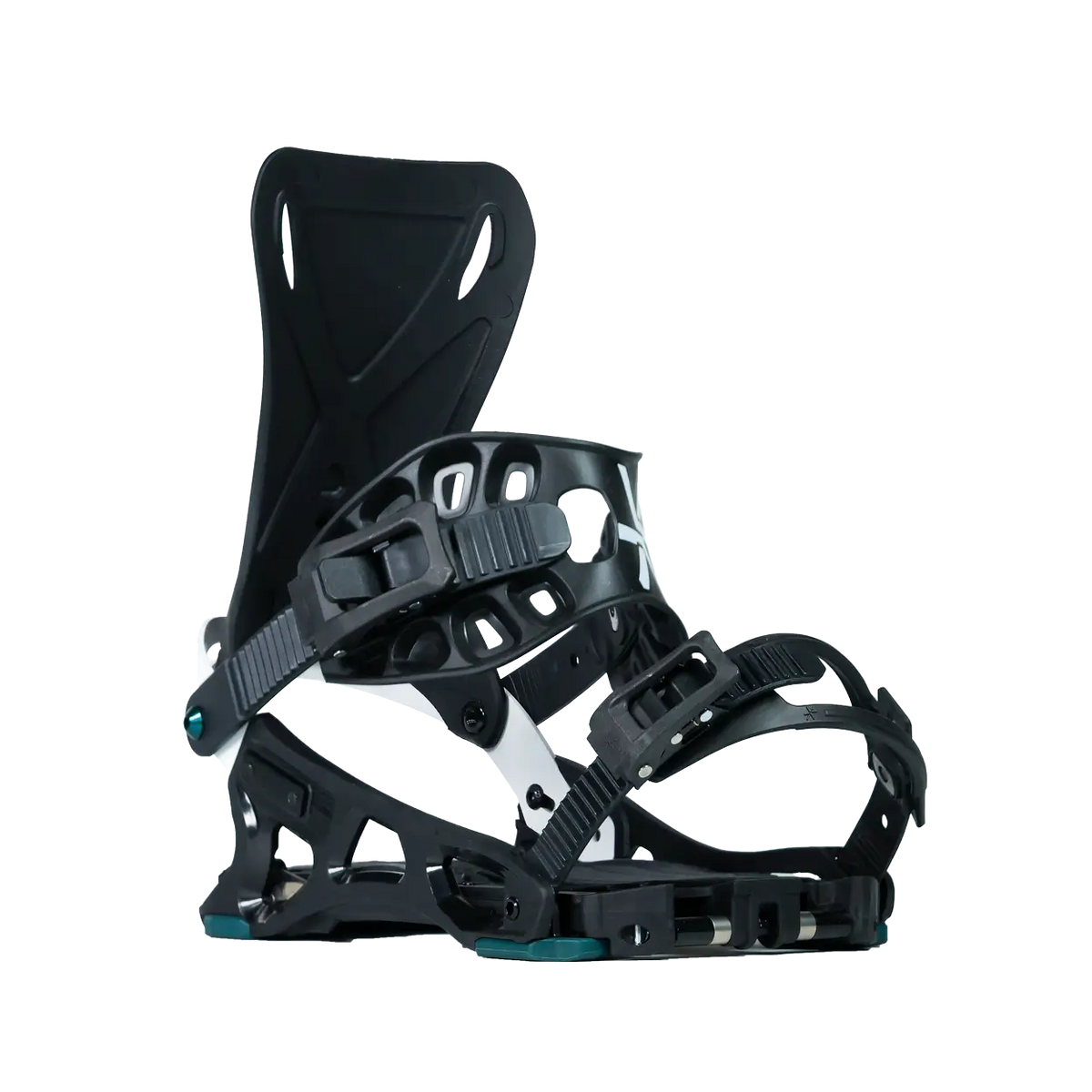

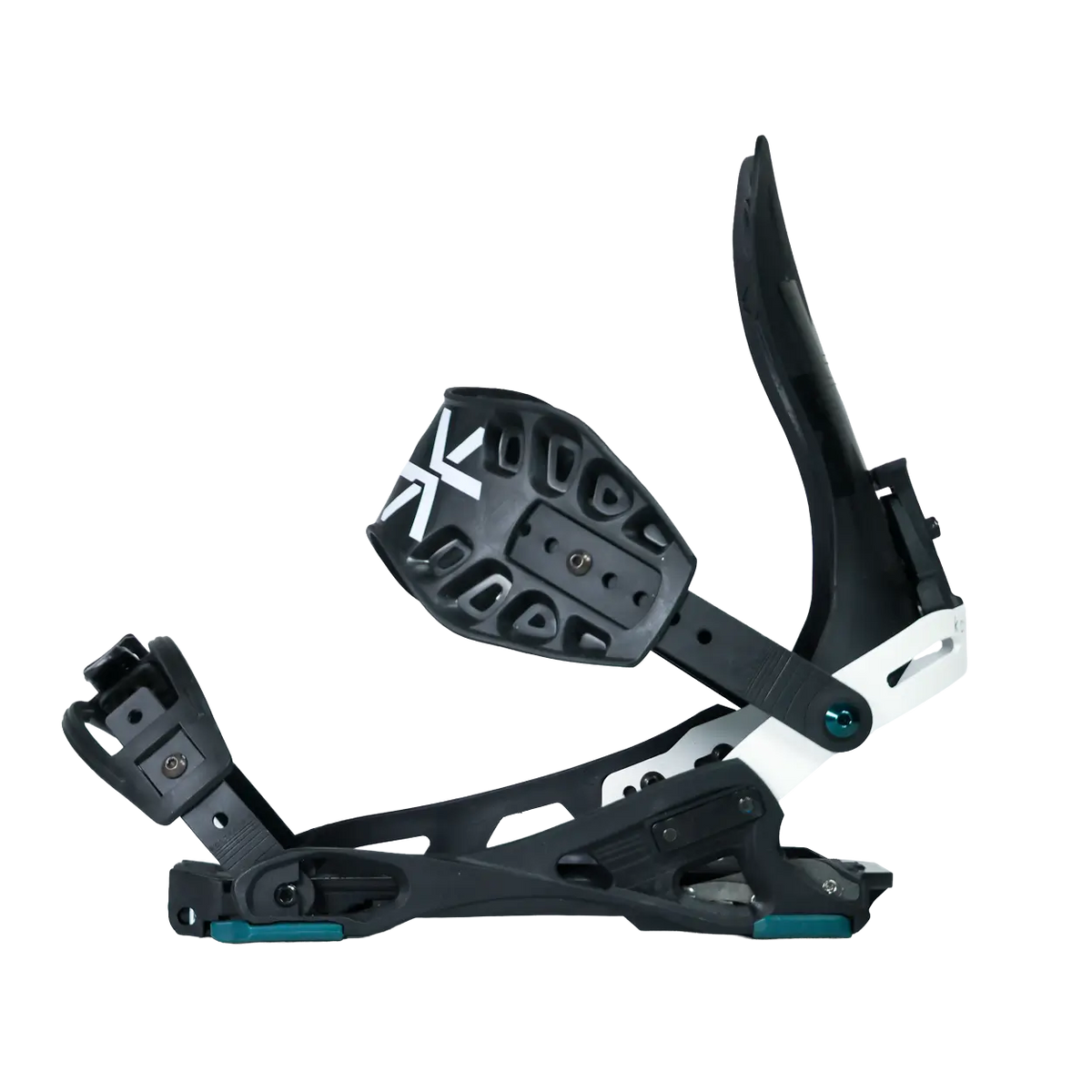

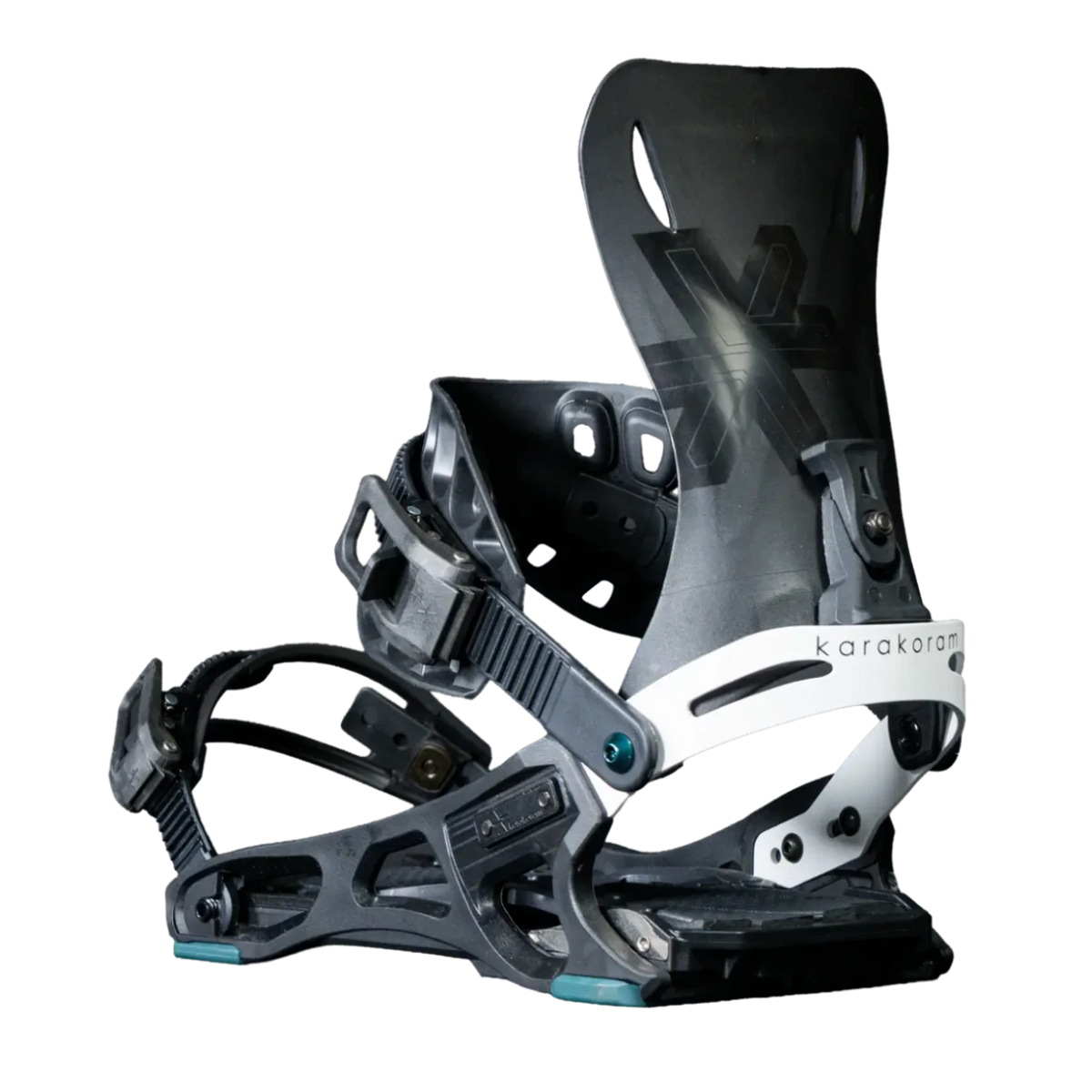

Karakoram Ultra Ranger + Split Interface Splitboard Binding

The Karakoram Ultra Ranger + Split Interface Splitboard Binding is a soft-boot splitboard binding for riders who want a solid snowboard connection on the descent and still tour long days. Active Joining, Karakoram's lever-locked spring preload, clamps the binding to the included Ride Mode 3.0 interface with no play in ride mode, and a Carbon Nyolite highback, Karakoram's carbon-reinforced composite, rated 7/10 for flex adds support without bulk. On the skin track a quarter turn drops the highback to -8° for a longer stride and the DualSpeed Risers flip up with a pole basket, which suits big tour days, steep descents and riders who want one pair of bindings for every board.

Specs Verified Ratings and setup guidance verified against manufacturer specifications.

Is This the Right Binding for You?

Best For
Soft-boot splitboarders who put ride feel and edge hold first, tour often, and want the option to move the same bindings onto a solid snowboard.
Consider Another Binding If
You tour in hardboots, or you already run a puck-based interface across several boards and want to keep one system.

CCBB Binding Ratings

Uphill Efficiency
4/5
-8° walk mode, two riser heights
Descent Security
5/5
Preloaded Active Joining, 7/10 highback
Transition Speed
4/5
Drop-on Ride Mode 3.0, lever lock
Serviceability
4/5
Straps and spare parts sold individually

Rating scale: 5 = top of its class, 4 = excellent, 3 = good, 2 = specialized or below average, and 1 = limited.

CCBB Binding Profile

Brake WidthNone. Splitboard bindings do not use brakes
Riser HeightsTwo heights, DualSpeed Riser set with a pole basket
Boot CompatibilitySoft snowboard boots only
AdjustabilityForward lean 0° to 22° in 2° steps, -8° walk
Mount PatternRide Mode 3.0 and Tour Mode, included

Why We Like It

  • Active Joining spring-loads the binding to the Ride Mode 3.0 interface when you close the lever, creating preloaded contact points out toward the edges. That removes the play a slip-fit puck system allows, and it is the reason a Karakoram setup rides closer to a solid board.
  • Dual Ride-Stride switches the highback between a preset ride lean of 0° to 22°, in 2° steps, and a -8° walk mode with a 90° turn of one adjuster. Nothing small to fiddle with in cold gloves, and the highback stops pushing on your calf on the climb.

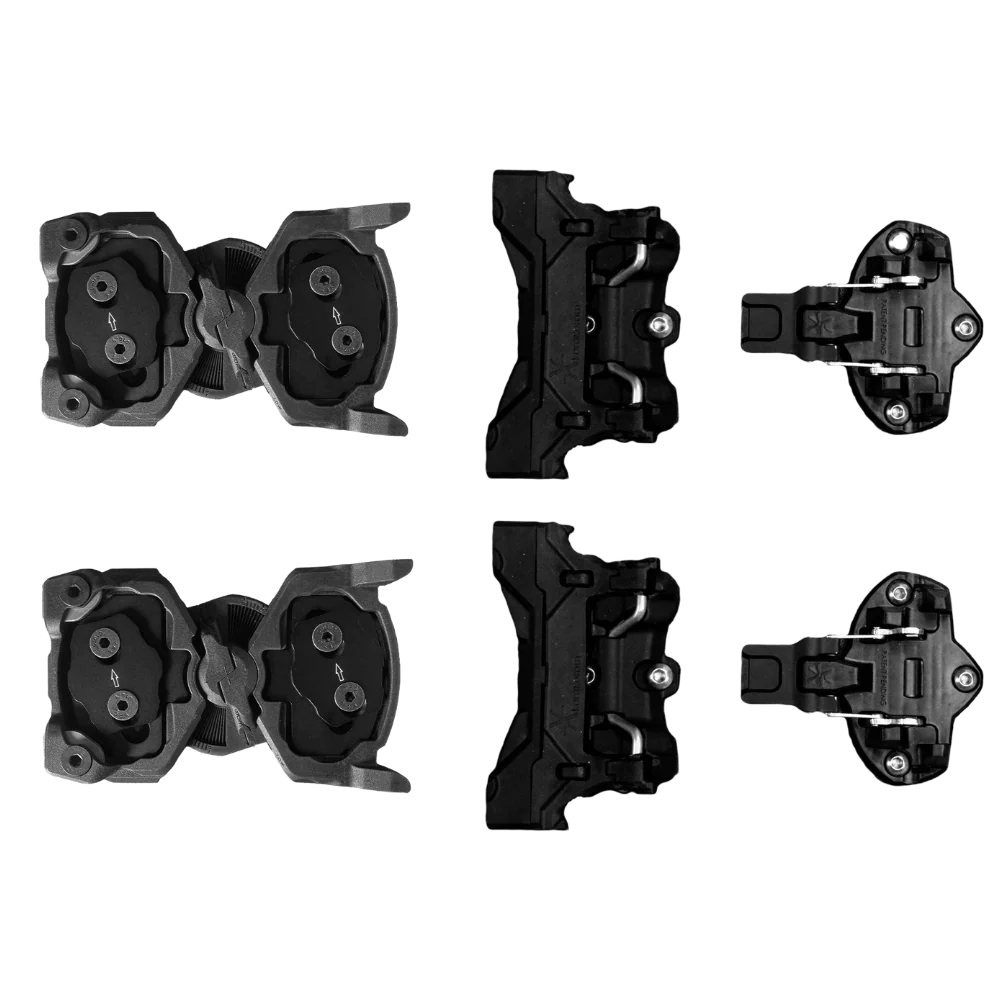

  • Ride Mode 3.0 has a smaller footprint and more snow clearance than earlier Karakoram interfaces, so packed snow is less likely to block the binding when you drop it on at a changeover.
  • The Ultra Ranger is a two-way binding: add Karakoram Quiver-Connectors to a solid snowboard and the same pair rides resort laps, with no second set of bindings to buy.

Best Uses

  • Splitboard touring for riders who rate the descent first
  • Steep, firm and wind-affected descents
  • Long tour days on a soft boot setup
  • Riders running a splitboard and a solid board with one pair of bindings
  • Tree runs and powder days with a supportive 7/10 highback

Mounting and Setup Advice

The Ultra Ranger ships with everything the board side of a Karakoram setup needs: the bindings, the Ride Mode 3.0 interface, the Tour Mode brackets, and DualSpeed Risers with Heel-Lock. The interface mounts to standard splitboard inserts, so check your board's inserts before you plan stance. Sizes run Small, Medium and Large; size to your boot, and bring the boot in if you sit between sizes. Riding a solid snowboard too means adding Karakoram Quiver-Connectors to that board.

Two details are worth knowing before the first tour. The Heel-Lock clamps the heel down on the fly for flat approaches and folds away when you do not need it; Karakoram rates its release load as equivalent to a DIN 6, but it is not certified, and the Ultra Ranger is a non-release soft-boot binding. And if you already own Karakoram gear, Ride Mode 3.0 works with all Prime System bindings including the Guide HB, while Prime1, Prime SL and Women's Small Nomad-W and X-W need a small modification. Bring older parts in and we will check them before you mix generations.

Mounting and setup guidance reviewed by CCBB splitboard staff. Confirm interface and stance against your board before drilling.

📏 Technical Specifications Manufacturer specs · Click to expand

Fit and Setup

SizesSmall, Medium, Large
IncludedBindings, Ride Mode 3.0 interface, Tour Mode brackets, DualSpeed Risers with Heel-Lock
Forward LeanRide Mode 0° to 22° in 2° increments, Surf Mode 0° or 11°, Walk Mode -8°
RisersDualSpeed Riser, two heights, flipped with a pole basket
Heel-LockOn-the-fly heel lock down, folds away. Release load equivalent to a DIN 6, not certified
Sold SeparatelyQuiver-Connectors for solid snowboards, skins, crampons

Construction and Compatibility

ChassisAsymmetric Carbon Nyolite composite chassis: high outside sidewall, dropped inside sidewall
HighbackReactive Highback in Carbon Nyolite composite, flex 7/10
DampingESP elastomeric suspension pads
FootbedEVA, the lightest footbed in the Karakoram line
HardwareCustom anodized 7075-T6 aluminum screws
BucklesRecycled carbon fiber tow
InterfaceRide Mode 3.0 and Tour Mode with Active Joining preload
Boot CompatibilitySoft snowboard boots. Splitboard soft bindings only. Not compatible with ISO 5355 (Alpine), GripWalk (ISO 23223), ISO 9523 (Touring), pin/tech or telemark bindings. Board side: the included Karakoram Ride Mode 3.0 and Tour Mode interface mounts to standard splitboard inserts. Solid snowboards require Karakoram Quiver-Connectors, sold separately.
ReleaseNone. Non-release soft-boot binding
Recommended UseSplitboard touring and freeride

Compare the Karakoram Ultra Ranger

Ultra Ranger vs. Spark R&D Arc ST Bindings

Two different interface philosophies. The Spark R&D Arc ST Bindings slide into a touring bracket and lock with a snap ramp, ride on pucks sold separately, and weigh 628 g per binding in a Medium. The Ultra Ranger includes its own interface and clamps to it with a lever-loaded preload. Riders who want the most solid ride feel lean Karakoram; riders who want pucks on several boards lean Spark.

Shop Spark R&D Arc ST Bindings

Ultra Ranger vs. Spark R&D Surge ST

The Spark R&D Surge ST is the stiffer of Spark's two soft boot bindings, with stiffer highbacks and a larger ankle strap than the Arc ST, and it is the closer match to the Ultra Ranger's supportive 7/10 highback. Pucks are still sold separately on the Spark, while the Ultra Ranger ships with its interface. Interface preference decides more than flex here.

Shop Spark R&D Surge ST

Ultra Ranger vs. Nitro Vertical ST Splitbindings

Both are soft boot splitboard bindings, and the two systems are not cross-compatible. The Nitro Vertical ST Splitbindings run on pucks, while the Ultra Ranger uses Karakoram's own Ride Mode 3.0 with Active Joining. Compare on interface, on what is included in the box, and on whether you want to move the bindings to a solid board.

Shop Nitro Vertical ST Splitbindings

Common Questions

Who should buy the Karakoram Ultra Ranger + Split Interface Splitboard Binding?
The Karakoram Ultra Ranger suits soft-boot splitboarders who rate the descent first and tour often. Active Joining preloads the binding to the included Ride Mode 3.0 interface for a solid-board feel, the 7/10 Carbon Nyolite highback adds support, and the -8° walk mode and DualSpeed Risers keep long climbs efficient.
What boots and boards work with the Karakoram Ultra Ranger?
The Karakoram Ultra Ranger takes soft snowboard boots only. It is a splitboard soft binding and is not compatible with ISO 5355 (Alpine), GripWalk (ISO 23223) or ISO 9523 (Touring) boots, or with pin/tech or telemark setups, so hardboot touring setups are out. On the board side, the included Ride Mode 3.0 and Tour Mode interface mounts to standard splitboard inserts. Solid snowboards need Karakoram Quiver-Connectors, sold separately.
Does the Heel-Lock make the Ultra Ranger a release binding?
No. Karakoram rates the Heel-Lock release load as equivalent to a DIN 6, but it is not certified, and that number is easy to misread. The Heel-Lock is a touring convenience that holds your heel down on flat approaches, and the Ultra Ranger is a non-release soft-boot binding in both tour and ride mode. Do not treat it as a safety release.
What comes in the box, and what else do I need?
The Ultra Ranger ships with the bindings, the Ride Mode 3.0 interface, the Tour Mode brackets and DualSpeed Risers with Heel-Lock, so a splitboard with standard inserts needs nothing else on the binding side. Skins and crampons are separate purchases, and riding a solid snowboard needs Karakoram Quiver-Connectors.
How does Dual Ride-Stride work?
One adjuster on the highback rotates 90° between two settings. Ride Mode holds a forward lean you preset between 0° and 22° in 2° steps; Walk Mode drops the highback to -8° so it stops pushing on your calf and you stride further. There are no small parts to remove, so the change takes seconds with gloves on.
Will Ride Mode 3.0 work with my older Karakoram bindings?
Mostly. Karakoram states Ride Mode 3.0 is compatible with all Prime System bindings, including the Guide HB. Prime1, Prime SL, and Women's Small Nomad-W and X-W bindings need a small modification first. If you are mixing generations, bring the parts in and we will check them before you ride.

Our Verdict

The Karakoram Ultra Ranger + Split Interface Splitboard Binding is the pick for soft-boot riders who want their splitboard to ride like a solid board. Active Joining clamps the binding to the included Ride Mode 3.0 interface with no play, a 7/10 Carbon Nyolite highback gives real support, and Dual Ride-Stride drops to -8° with a quarter turn for the climb. The interface is in the box, and Quiver-Connectors turn the same pair into resort bindings. Know that the Heel-Lock is a touring aid, not a release, and plan skins and crampons as separate purchases.
