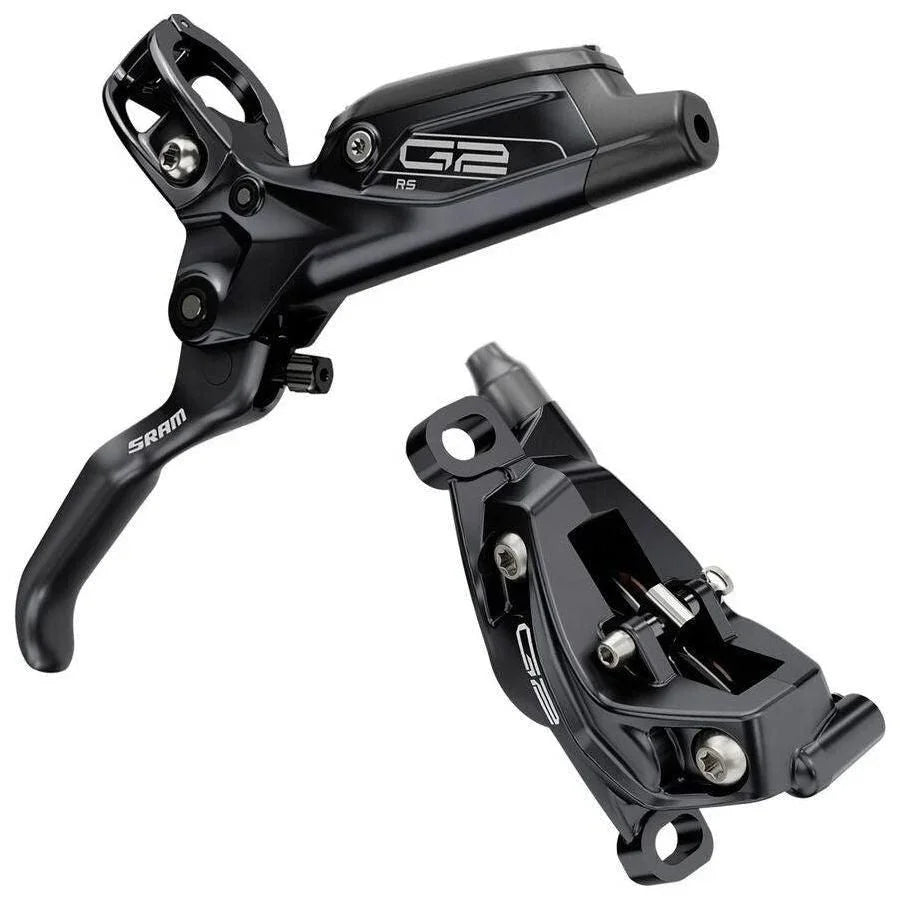

The Sram Disc Brake G2 RS was designed around the progressive feel of the Swinglink technology. Sram gave these brake pads some love in the design process. The Swinglink system gets the brake pads on the rotors fast and then gradually increases the pressure with a very progressive braking feel.
SPECIFICATIONS
| APPLICATION (DB) | MTB |
|---|---|
| BRAKE TYPE | Hydraulic |
| COLOR (DB) | Diffusion Black Anodized |
| BLADE MATERIAL | Aluminum - Stamped |
| ORIENTATION | Front, Rear |
| PAD TYPE (DISC) | Steel-backed organic |
| BRACKET (DISC BRAKE) | Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P |
| REACH ADJUST | Tool-free |
| CONTACT ADJUST | No |
| HYDRAULIC FLUID | DOT 4 |
| LEVER PIVOT | Bushing |
